Interleaved 2 of 5 Barcode Introduction

Interleaved 2 of 5 Generator Size Setting, Generate Barcode in C# VB.NET, ASP.NET applications

Interleaved 2 of 5 is a continuous, numeric, high-density, self-checking, and bidirectionally decodable symbology with a variable data string length. Interleaved 2 of 5 is primarily used in warehouse and distribution industry.

Barcode Solutions for barcode 2 of 5 Interleaved Creating & Reading

Interleaved 2 of 5 Barcode Features

Encodable Chars	Interleaved 2 of 5 can encode numbers from 0 to 9.
Checksum Digit	Interleaved 2 of 5 is self-checking, but an optional modulo 10 check digit may be added to enhance data security. To compute the checksum, simply set "AddCheckSum" true. Please note that Interleaved 2 of 5 encode data in digit pairs, so a leading zero may need to be prefixed to the data string when a check digit is added.
Start/Stop	Interleaved 2 of 5 have start/stop patterns encoded as "1010"and "1101" respectively. The patterns have no human-readable interpretation.

Interleaved 2 of 5 Barcode Features

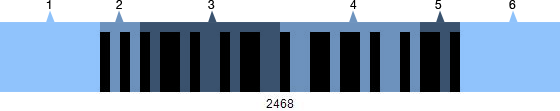

Quiet Zone	Start Pattern	Data Digits "24"	Data Digits "68"	Stop Pattern	Quiet Zone
1	2	3	4	5	6

To set the size of Interleaved 2 of 5, two things are of importance, i.e. the X Dimension and the barcode width.
Click here for more information on Interleaved 2 of 5 size setting.
