ITF-14 Size Setting

ITF-14 Generator Size Setting, Generate ITF-14 in C#, ASP.NET, VB.NET applications

Size setting overview
This page is on size setting of ITF-14, emphasizing 2 important factors: barcode width and height.

Barcode structure

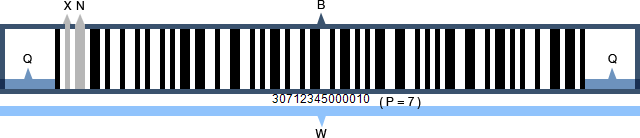

The ITF 14 barcode consists of Quiet zone, Start character, Character pairs, Stop character and Quiet zone.

ITF-14 Size Setting

Barcode Width:
The W (measured in pixel), including quiet zones, can be calculated from the following expression:

ITF-14

W = [ P( 4N + 6 ) X +2Q + 2B

W : the symbol width of ITF-14
Q : the width of quiet zone on either side, Q min = 10X.
P : the number of character pairs
B : the width of the bearer bar
X : the width of a narrow element
N : the wide-to-narrow ratio

Barcode Height:
The ITF-14 barcode Height, H (measured in pixel) can be calculated from the following expression:

ITF-14

For ITF-14 Symbols, the height of the bars (dark bars) in the target size symbol is 32 millimeters (1.25 inches).

For more details on ITF14 size setting, please go through the below guide:
