Code 39 Size Setting

Size setting overview
This page is on size setting of Code 39, emphasizing 2 important factors: barcode width and height.

Barcode structure

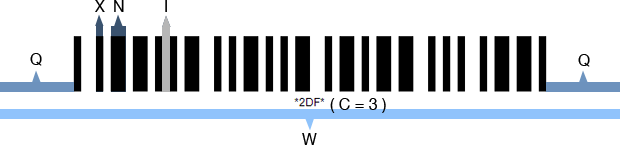

The components of Code 39 barcode include a leading quiet zone, start character, one or more symbol characters representing data (including check character, if present), stop character and a trailing quiet zone.

Barcode Width:
The W (measured in pixel), including quiet zones, can be calculated from the following expression:

Code 39

W = [ P (4N + 6 ) +N + 6 ) ] X + 2Q

W: barcode width of Interleaved 2 of 5. X: width of Interleaved 2 of 5 narrow bar; (X min = 1 pixel) N: the wide bar to narrow bar ratio; (2.0<=N<=3.0) P: the number of character pairs. Q: the width of the quiet zone; (Qmin= 10X)

Barcode Width:
The Code 39 barcode width, W (measured in pixel), including quiet zones, can be calculated from the following expression:

Code 39

According to ISO/IEC 16388:2007 (E) standard, there are no detailed requirements for code 39 barcode height. However, there is a recommended minimum bar code height for manual scanning, that is, 5,0 mm or 15% of symbol width including quiet zones, whichever is greater.
