Intelligent Mail (OneCode) Size Setting

OneCode Generator Size Setting, Generate Intelligent Mail in C#, ASP.NET, VB.NET applications

Size setting overview
This page is on size setting of Intelligent Mail, emphasizing 2 important factors: barcode width and height.

Barcode structure

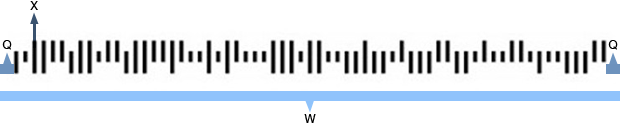

The Intelligent Mail barcode consists of Left Quiet Zone, Vertical Quiet Zone, Encoded data and Right Quiet Zone.

Intelligent Mail Size Setting

Barcode Width:
The W (measured in pixel), including quiet zones, can be calculated from the following expression:

Intelligent Mail

W = 2Q + 129X

W : the symbol width of Intelligent Mail
Q : the width of the quiet zone
X : the width of a module bar (Xmin=0.015 inch)

Barcode Height:
The Intelligent Mail barcode Height, H (measured in pixel) can be calculated from the following expression:

Intelligent Mail

there are no detailed requirements for Intelligent Mail barcode height.. Customers may adjust the barcode height through Top and Bottom Margin settings.

For more details on USPS Intelligent Mail barcode size setting, please go through the below guide:
