  .NET EAN-8 Installation in Visual Studio C#

    See Installation in Visual Studio C#

  Barcode Symbology Setting

Avapose .NET Barcode Generator generates 23 linear barcode symbologies. Find the properties “Symbology” (default value: Code128Auto) in Properties Windows, and input the symbology value you want according to the following list:

Symbology	EAN-8	EAN-8 with 2-digit add-on symbol	EAN-8 with 5 digit add-on symbol
Symbology Value	EAN8	EAN8Sup2	EAN8Sup5
Symbology Sample Code in C#	BarCode barcode = new BarCode(); barcode.Symbology = Symbology.EAN8;	BarCode barcode = new BarCode(); barcode.Symbology = Symbology.EAN8Sup2;	BarCode barcode = new BarCode(); barcode.Symbology = Symbology.EAN8Sup5;
Symbology Sample Image

EAN-8 Data Encoding

Find the properties “Data” (default value: 128) in Properties Windows. Input the data you are going to encode in the EAN-8. Make sure the data you input is within the character set of EAN-8.

Symbology Value	Symbology Character Set	Input Digits Account
EAN8	Numeric Character: 0, 1, 2, 3, 4, 5, 6, 7, 8, 9;	7
EAN8Sup2	Numeric Character: 0, 1, 2, 3, 4, 5, 6, 7, 8, 9;	7 +2
EAN8Sup5	Numeric Character: 0, 1, 2, 3, 4, 5, 6, 7, 8, 9;	7 +5

Sample Code

Property Name Sample Code – EAN8

Data

BarCode barcode = new BarCode();
barcode.Symbology = Symbology.EAN8;
barcode.Data = "9876543";

Sample Code

Property Name Sample Code – EAN8Sup2

Data

BarCode barcode = new BarCode();
barcode.Symbology = Symbology.EAN8Sup2;
barcode.Data = "9876543";
barcode.SupData = "12";

Sample Code

Property Name Sample Code – EAN8Sup5

Data

BarCode barcode = new BarCode();
barcode.Symbology = Symbology.EAN8Sup5;
barcode.Data = "9876543";
barcode.SupData = "12345";

EAN-8 Supplement Barcode Tutorial

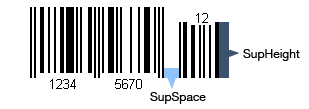

When supplement barcode is needed, you also need to know the two properties for the supplement barcode generating besides the supplement data (SupData). They are SupHeight and SupSpace.

Property	Value Type	Default Value	Property Description	Sample Code
SupHeight	float	0.8f	SupHeight= supplement barcode height/ main barcode height; the value of SupHeight ranges from 0 to 0.8f	BarCode barcode = new BarCode(); barcode.Symbology = Symbology.EAN8Sup5; barcode.Data = "9876543"; barcode.SupData = "12345"; barcode.SupHeight = 0.6f;
SupSpace	float	15 (pixel)	The space between the main barcode and the supplement barcode	BarCode barcode = new BarCode(); barcode.Symbology = Symbology.EAN8Sup5; barcode.Data = "9876543"; barcode.SupData = "12345"; barcode.SupHeight = 0.6f; barcode.SupSpace = 20;

Barcode Size Setting Tutorial

Size Setting of the barcode provided by Avapose .NET Barcode Generator is comprehensive.

We can generally divide it into four parts:

1. Unit Of Measure Setting

2. Image Size Setting : BarcodeImageWidth and BarcodeImageHeight

3. Module Size Setting: X and Y

4. Margin Size Setting: MarginTop, MarginBottom, MarginLeft, and MarginRight

Property	Value Type	Default Value	Property Description	Sample Code
UOM	UnitOfMeasure	Pixel	The unit of measure; Options: Pixel Cm Inch	BarCode barcode = new BarCode(); barcode.Symbology = Symbology.EAN8; barcode.Data = "9876543"; barcode.UOM = UnitOfMeasure.Cm;
BarcodeImageWidth	float	0	Barcode image width	BarCode barcode = new BarCode(); barcode.Symbology = Symbology.EAN8; barcode.Data = "9876543"; barcode.BarcodeImageWidth = 175;
BarcodeImageHeight	float	0	Barcode image height	BarCode barcode = new BarCode(); barcode.Symbology = Symbology.EAN8; barcode.Data = "9876543"; barcode.BarcodeImageHeight =50;
X	float	2	Width of module in unit of measure	BarCode barcode = new BarCode(); barcode.Symbology = Symbology.EAN8; barcode.Data = "9876543"; barcode.X = 1;
Y	float	75	Height of module in unit of measure	BarCode barcode = new BarCode(); barcode.Symbology = Symbology.EAN8; barcode.Data = "9876543"; barcode.Y = 50;
AutoResize	bool	false	-	BarCode barcode = new BarCode(); barcode.Symbology = Symbology.EAN8; barcode.Data = "9876543"; barcode.AutoResize = true;
MarginTop	float	0	Top margin width of the barcode image in unit of measure	BarCode barcode = new BarCode(); barcode.Symbology = Symbology.EAN8; barcode.Data = "9876543"; barcode.MarginTop = 5; barcode.MarginBottom = 5; barcode.MarginLeft = 5; barcode.MarginRight = 5;
MarginBottom	float	0	Bottom margin width of the barcode image in unit of measure
MarginLeft	float	0	Left margin width of the barcode image in unit of measure
MarginRight	float	0	Right margin width of the barcode image in unit of measure
